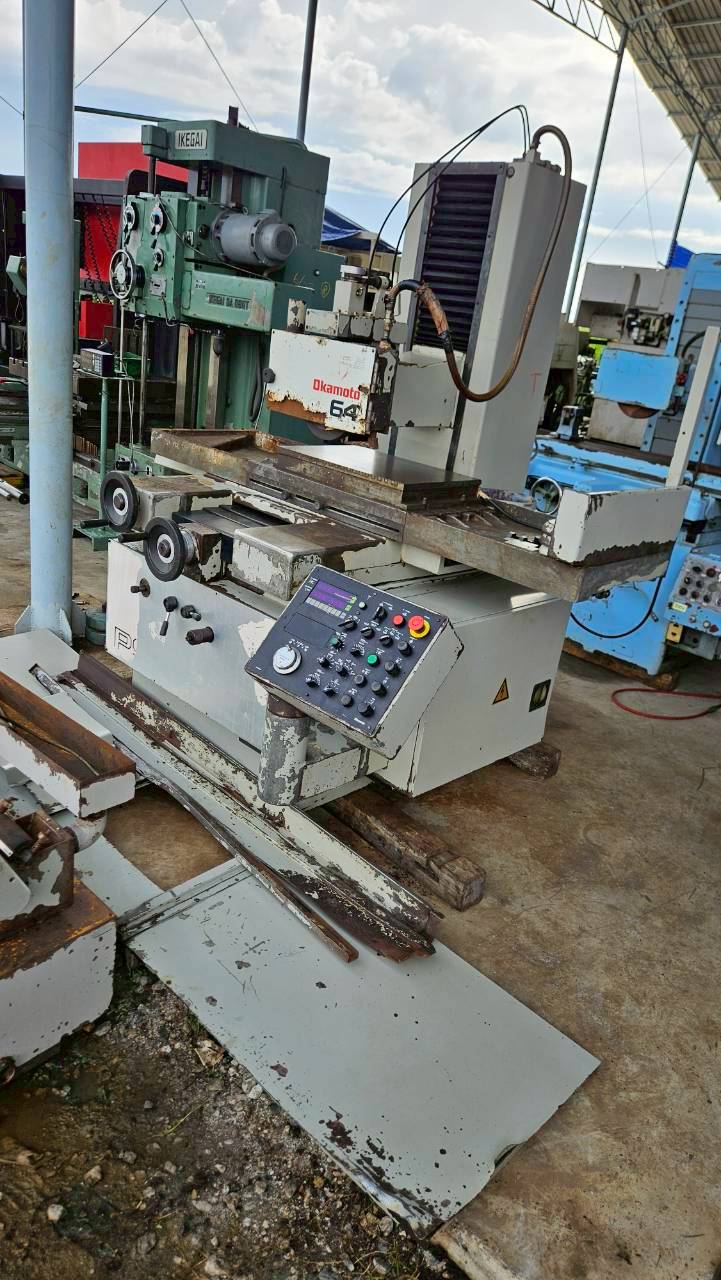

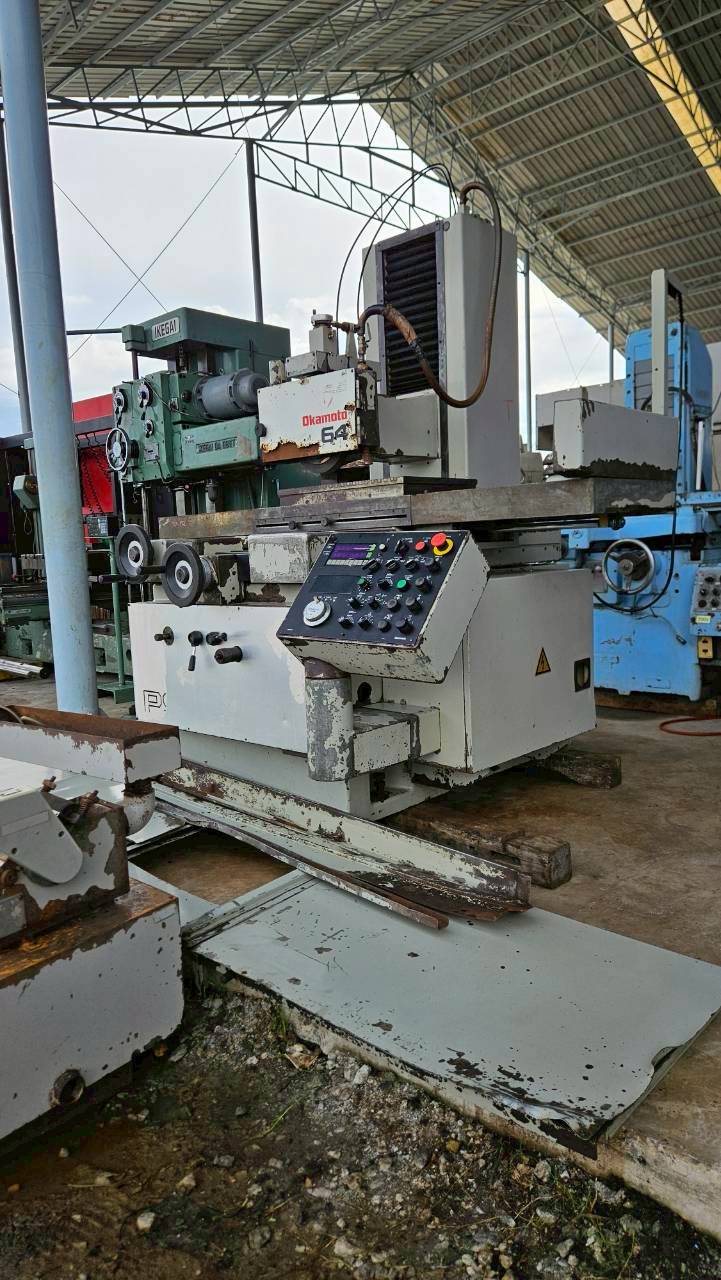

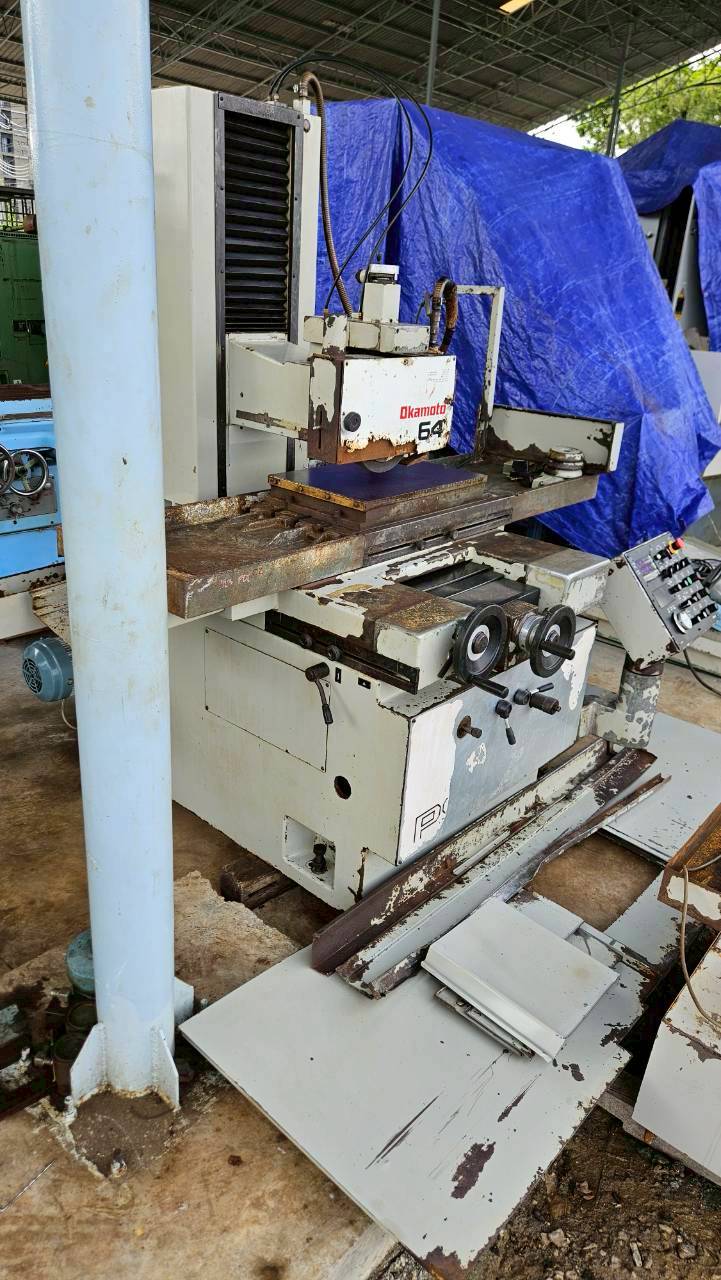

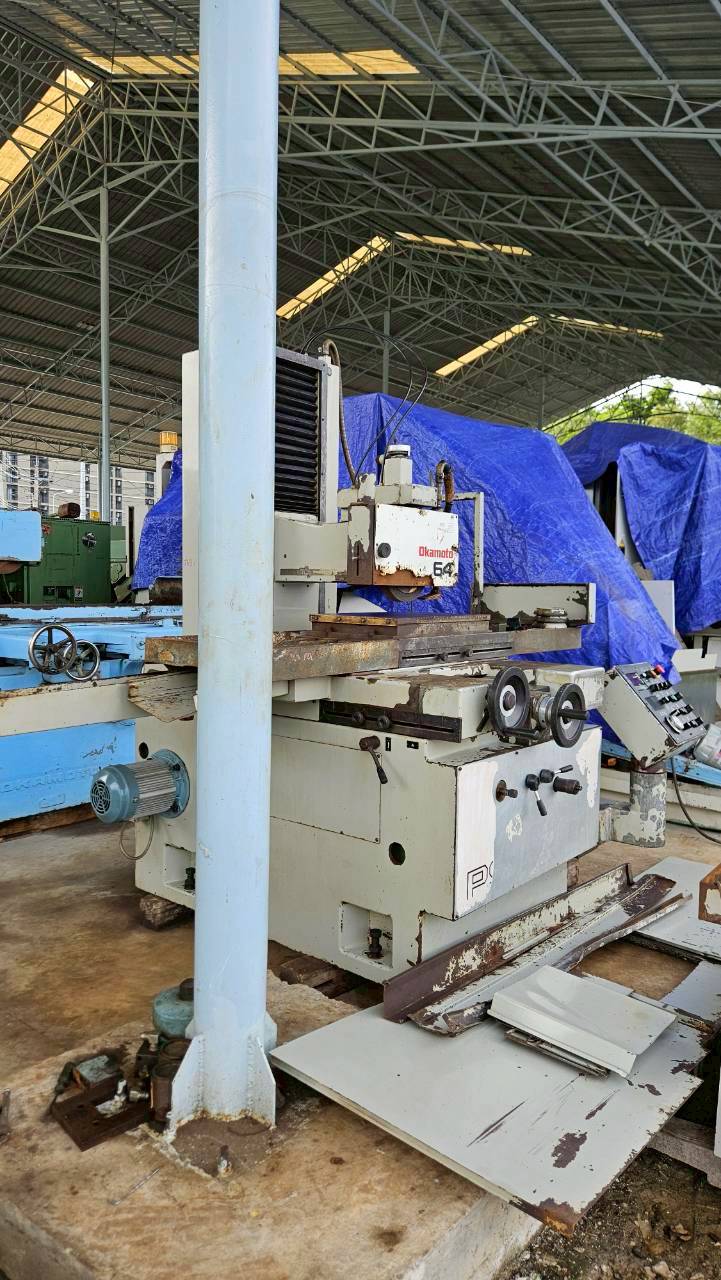

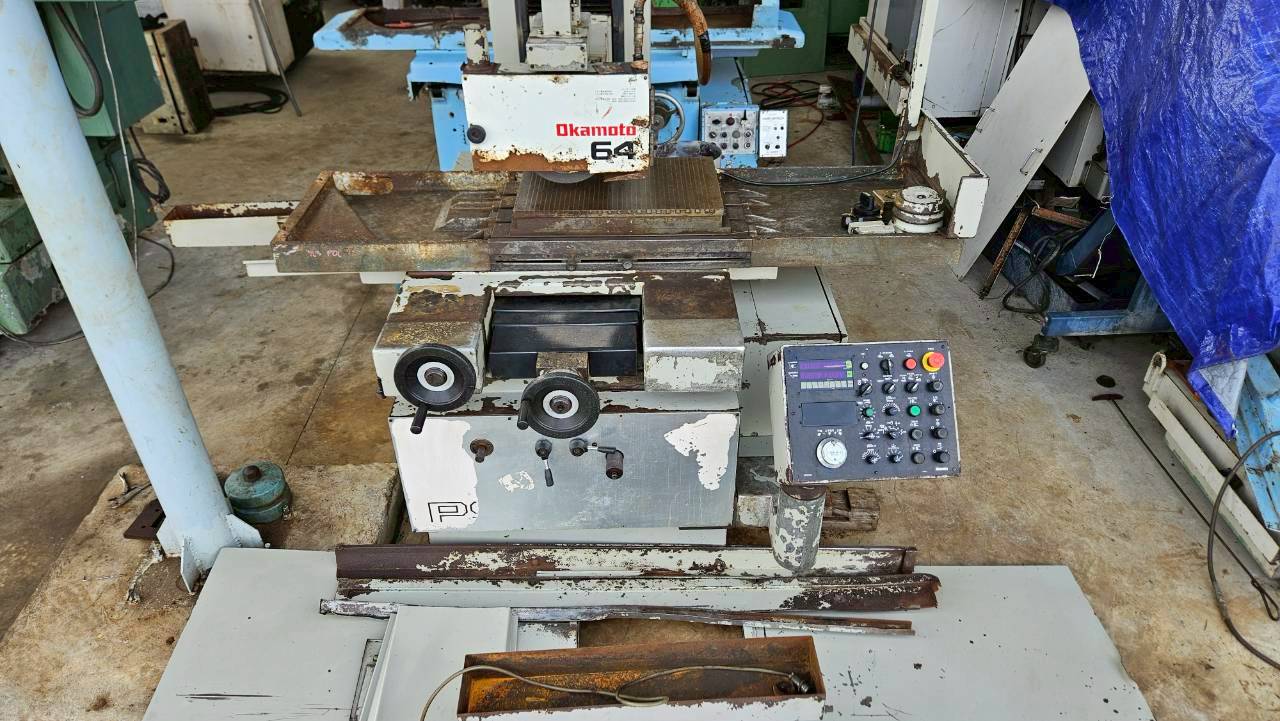

[SJK33] OKAMOTO PSG-64DX 1992

คำอธิบาย

WorkWorktable size: 605 * 400mm

Distance from top of Worktable to bottom of grinding wheel: 347.5mm

Standard disk (length * width * height) : 600 * 400 * 85mm

grinding wheel size (external diameter * width * Internal diameter) : φ355X 38 X φ127mm

Sand wheel shaft motor power: 4KW

Max Load of Worktable including suction cup: 420kg

T-slot (width * number) : 17*3

Maximum travel: 750mm

Average longitudinal feed rate: 0.3-25m/min
