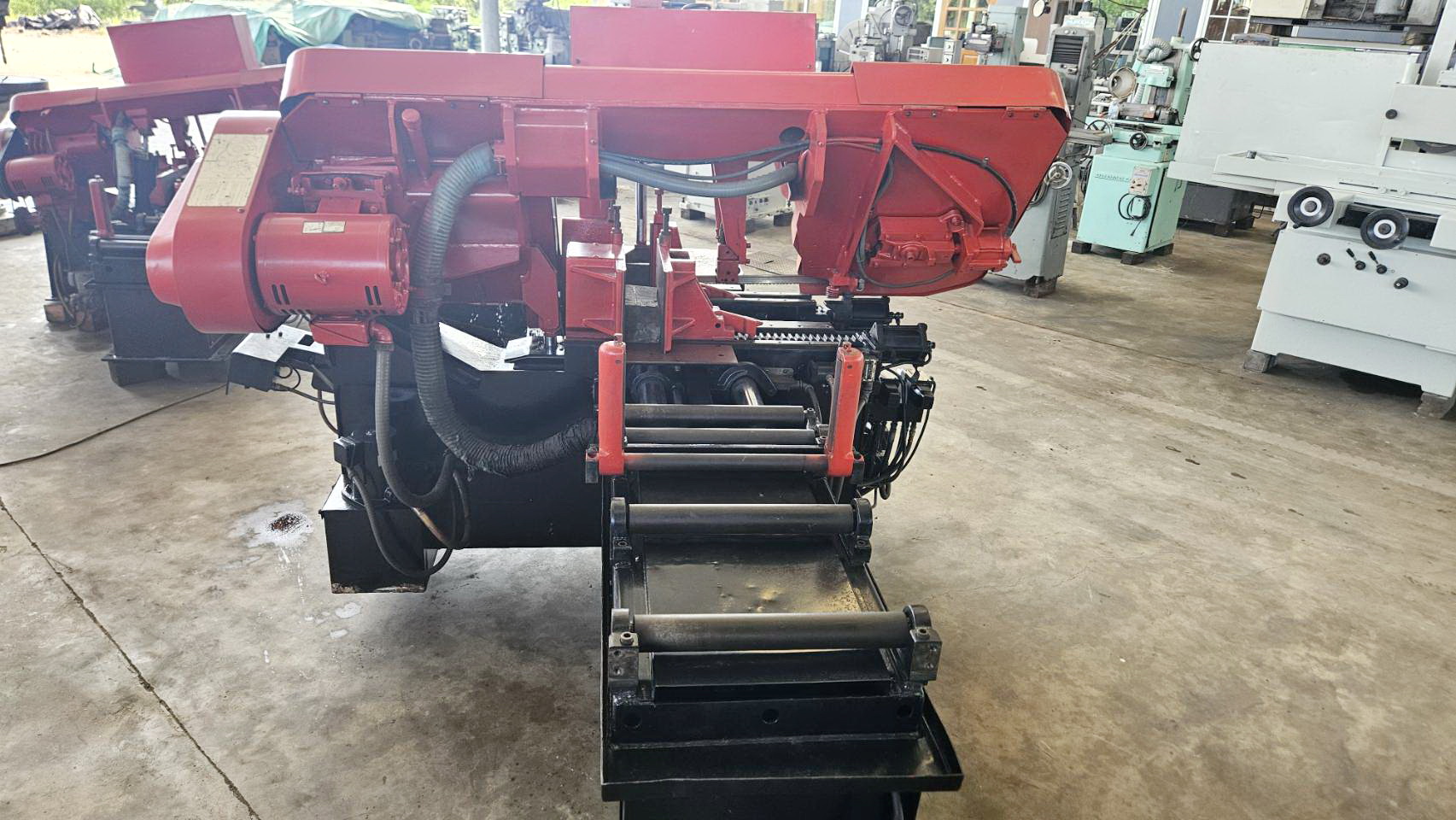

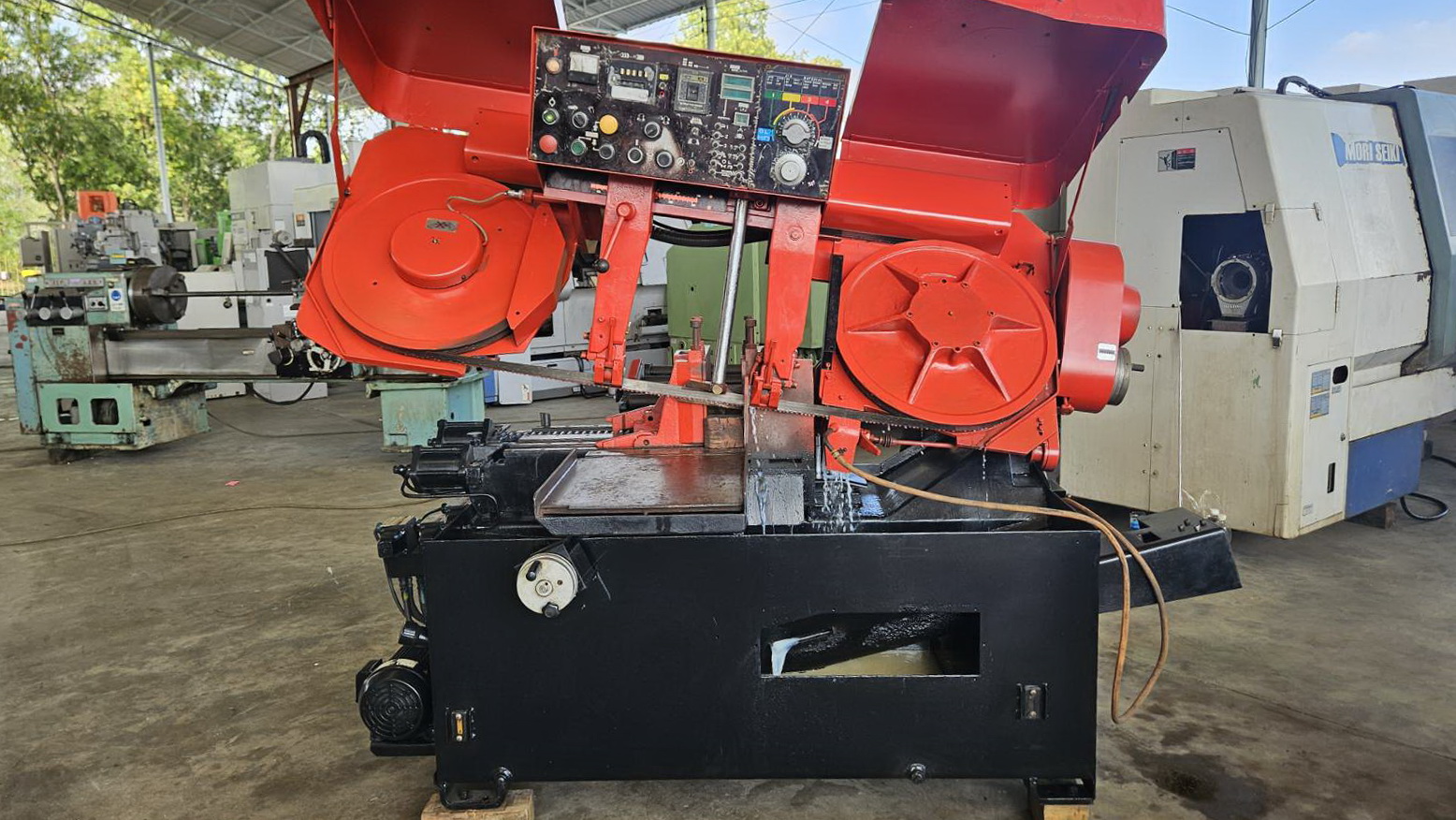

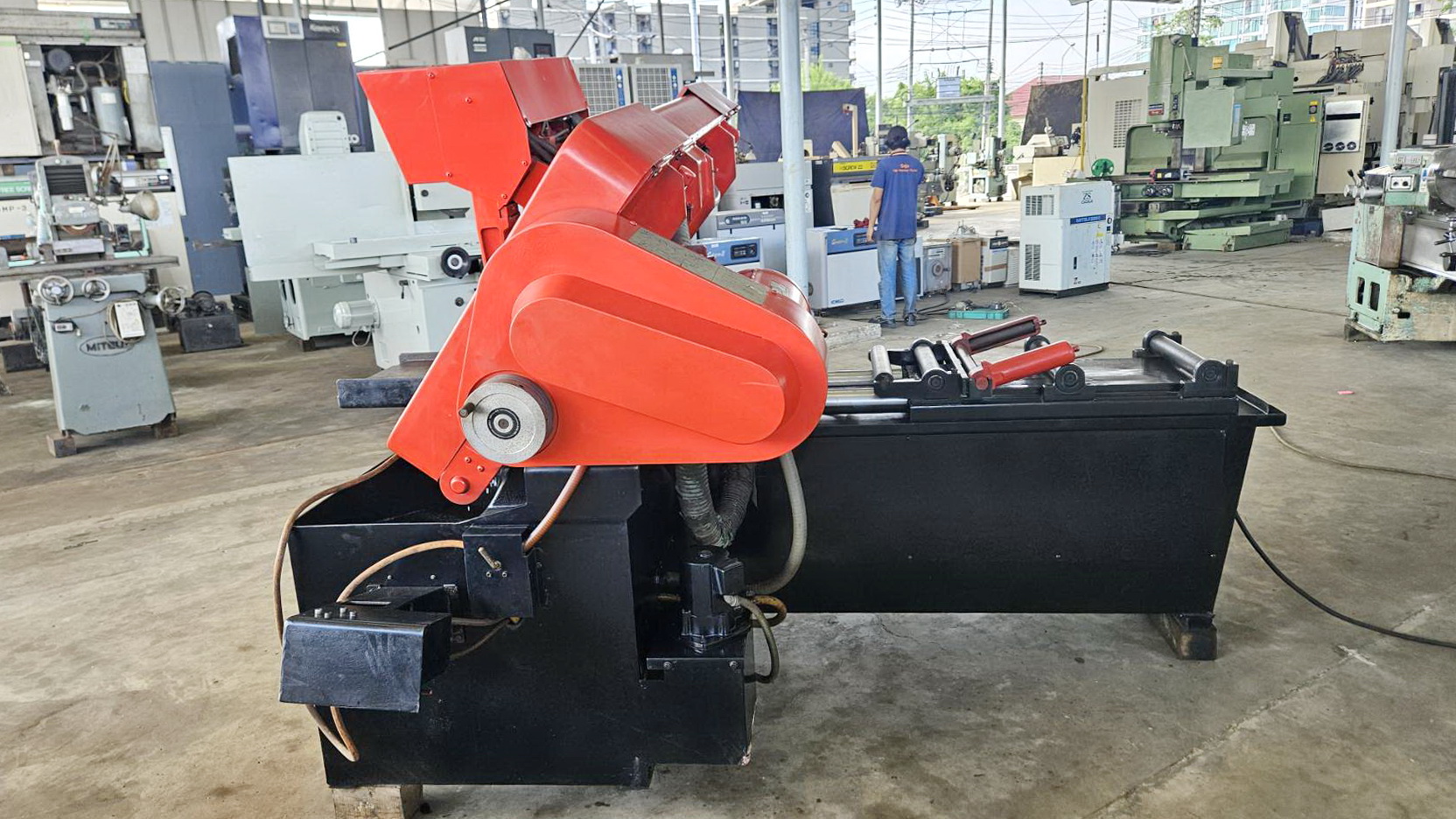

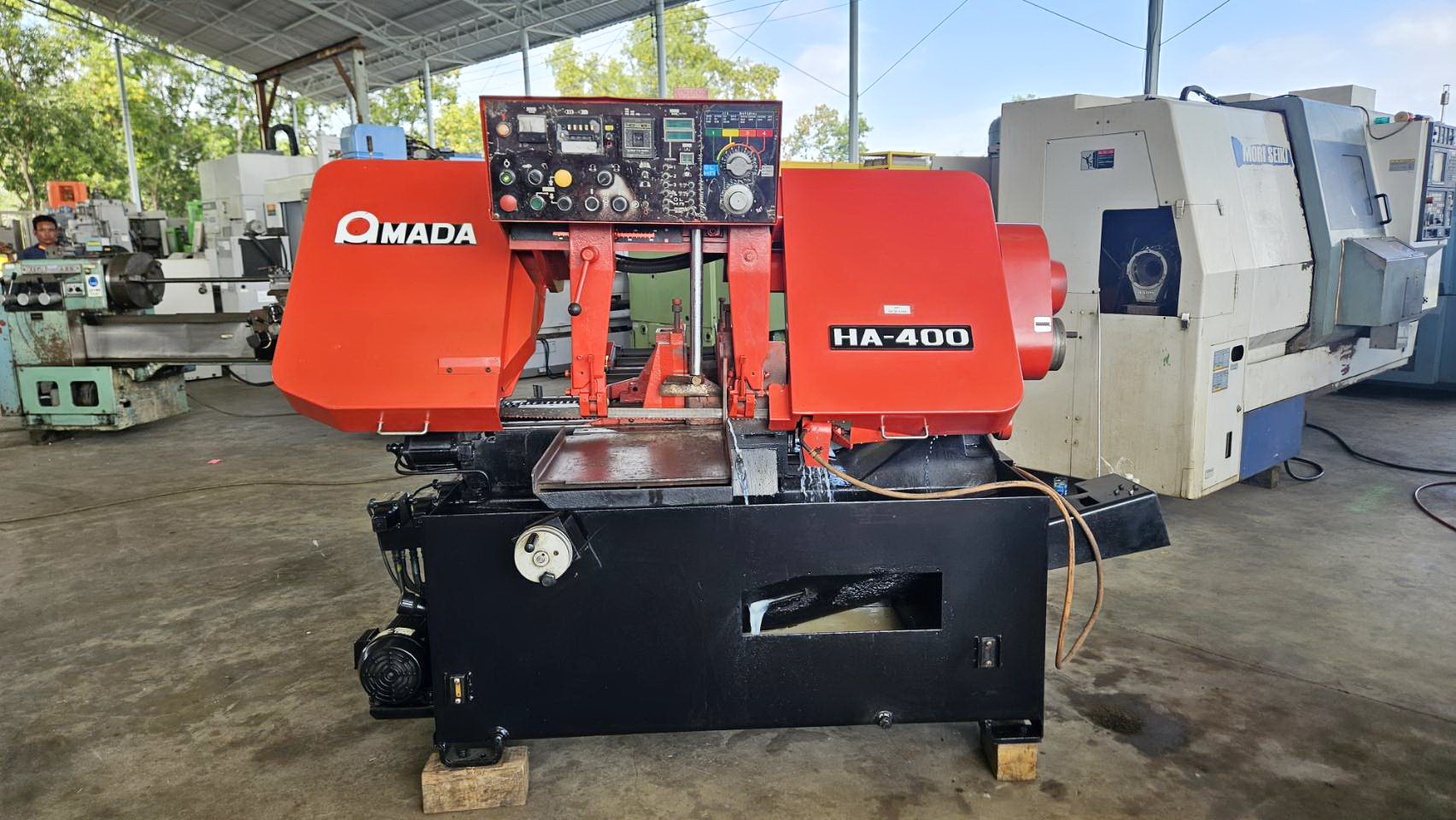

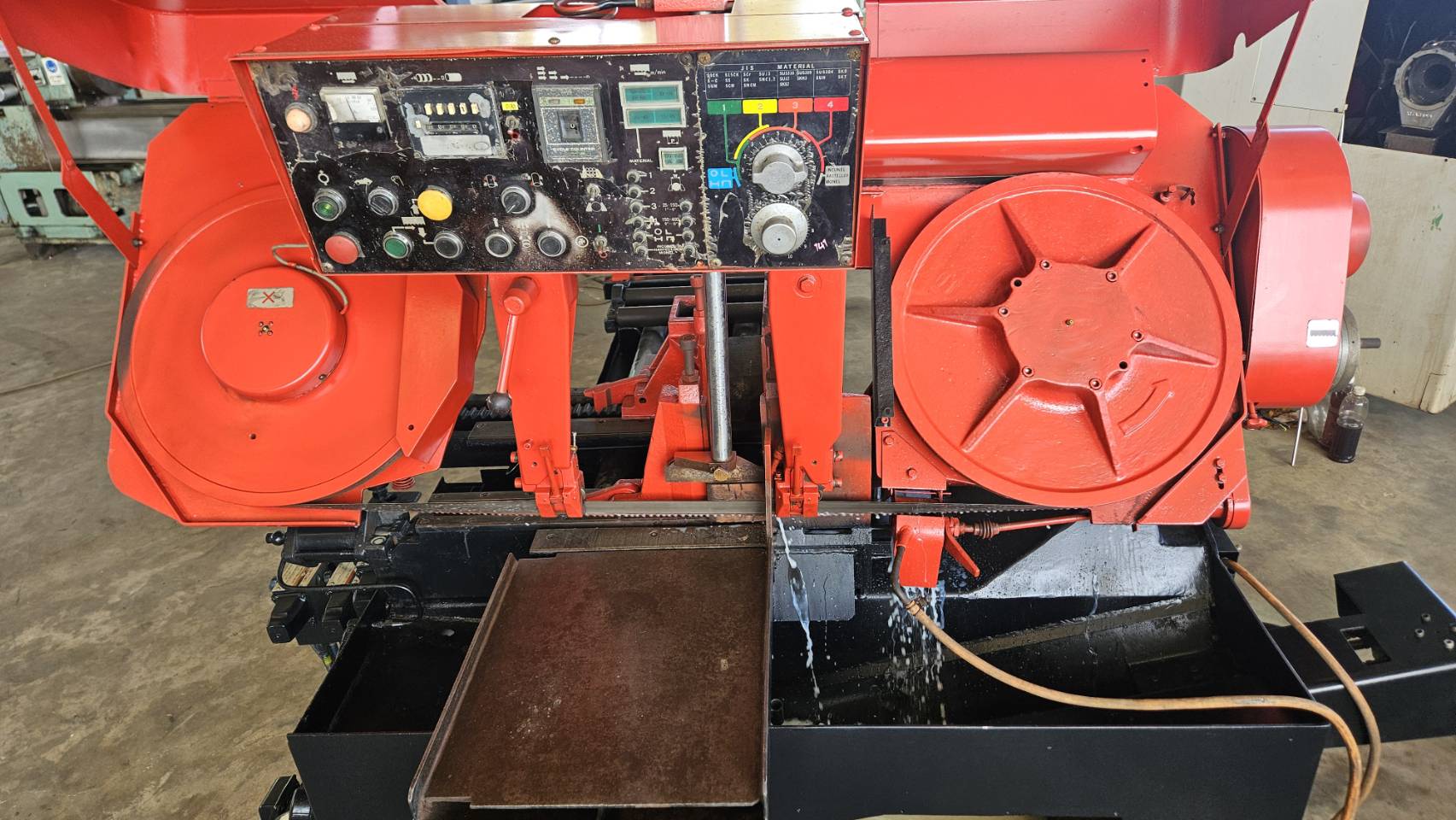

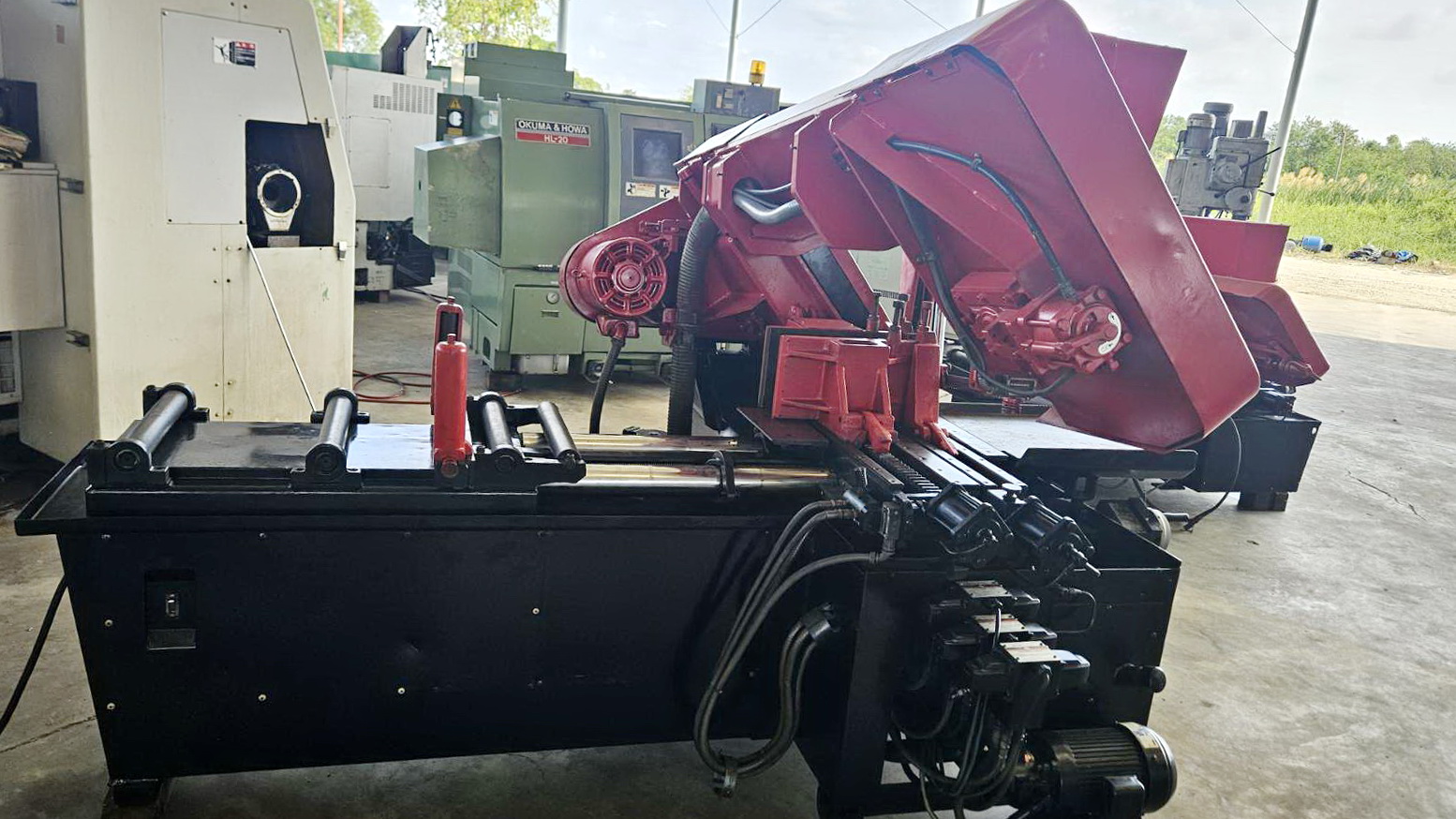

[SJK20] AMADA HA-400

คำอธิบาย


Machine type : HORIZONTAL BANDSAW
Brand	: AMADA
Model	: HA-400
Year	: 1982
SPECIFICATIONS
Round Cutting capacity (Dia)		:	Ø 400	mm
Rectangle Cutting capacity (W x H)		:	▭ 415 * 415	mm
Blade size (W x T x L)		:	34 * 1.1 * 4570	mm
Blade speed [/24 – 80(60Hz)]		:	17 – 90(60Hz)	m/min
Motors	Saw blade	:	5.5	kW
	Hydraulic pump	:	1.5	kW
	Coolant pump	:	0.18	kW
Power requirement		:	11	kW
Stroke length		:	500	mm
Table height		:	800	mm
Allowable load (Mass of work)		:	2500	kg
Machine Diamension (while working)
Width * Depth * Height		:	245*2662210	cm.
Machine Weight		:	2.2	Ton
