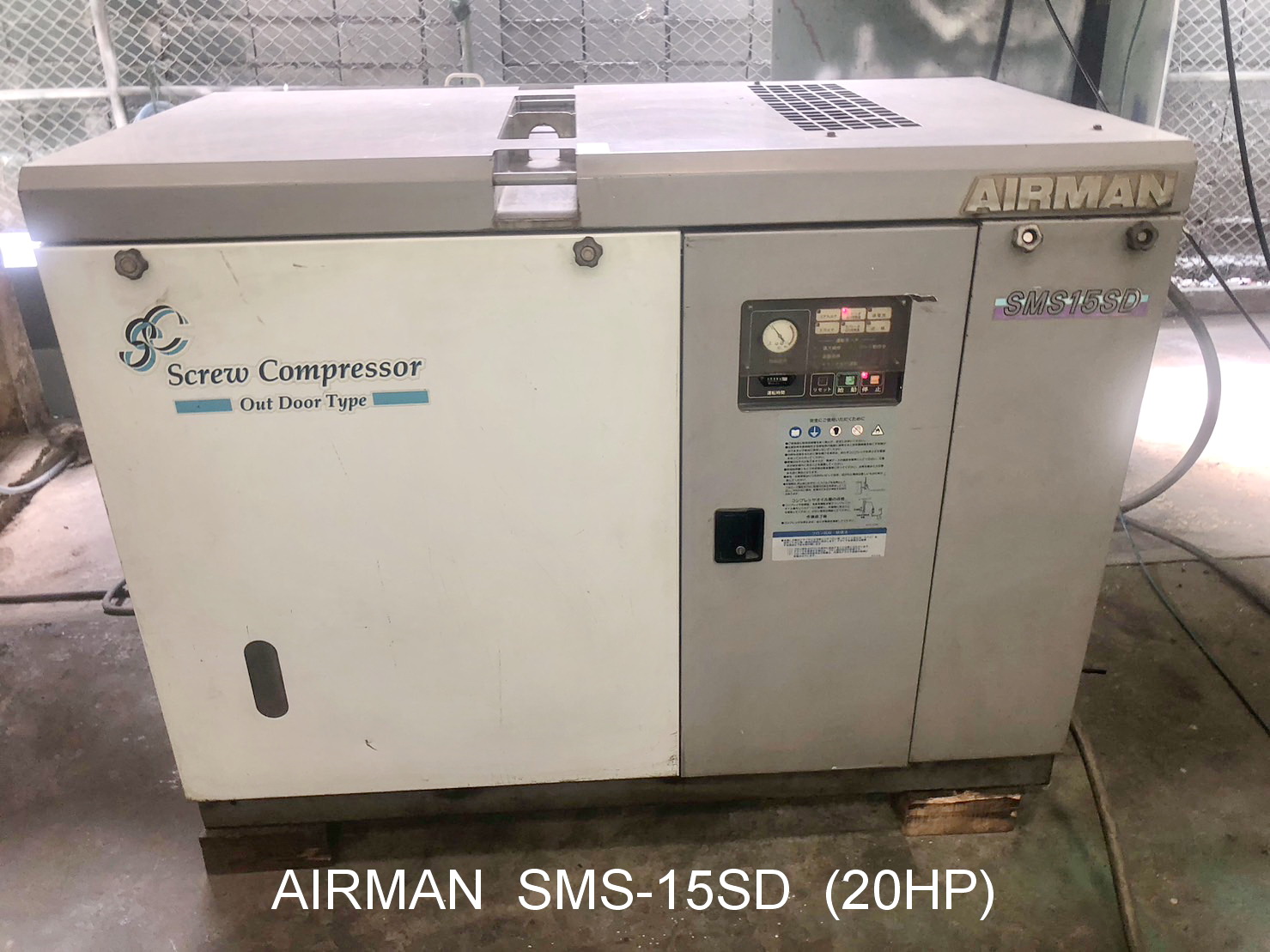

[SJK16] AIRMAN SMS-15SD(20HP) 2014

คำอธิบาย

Specifications

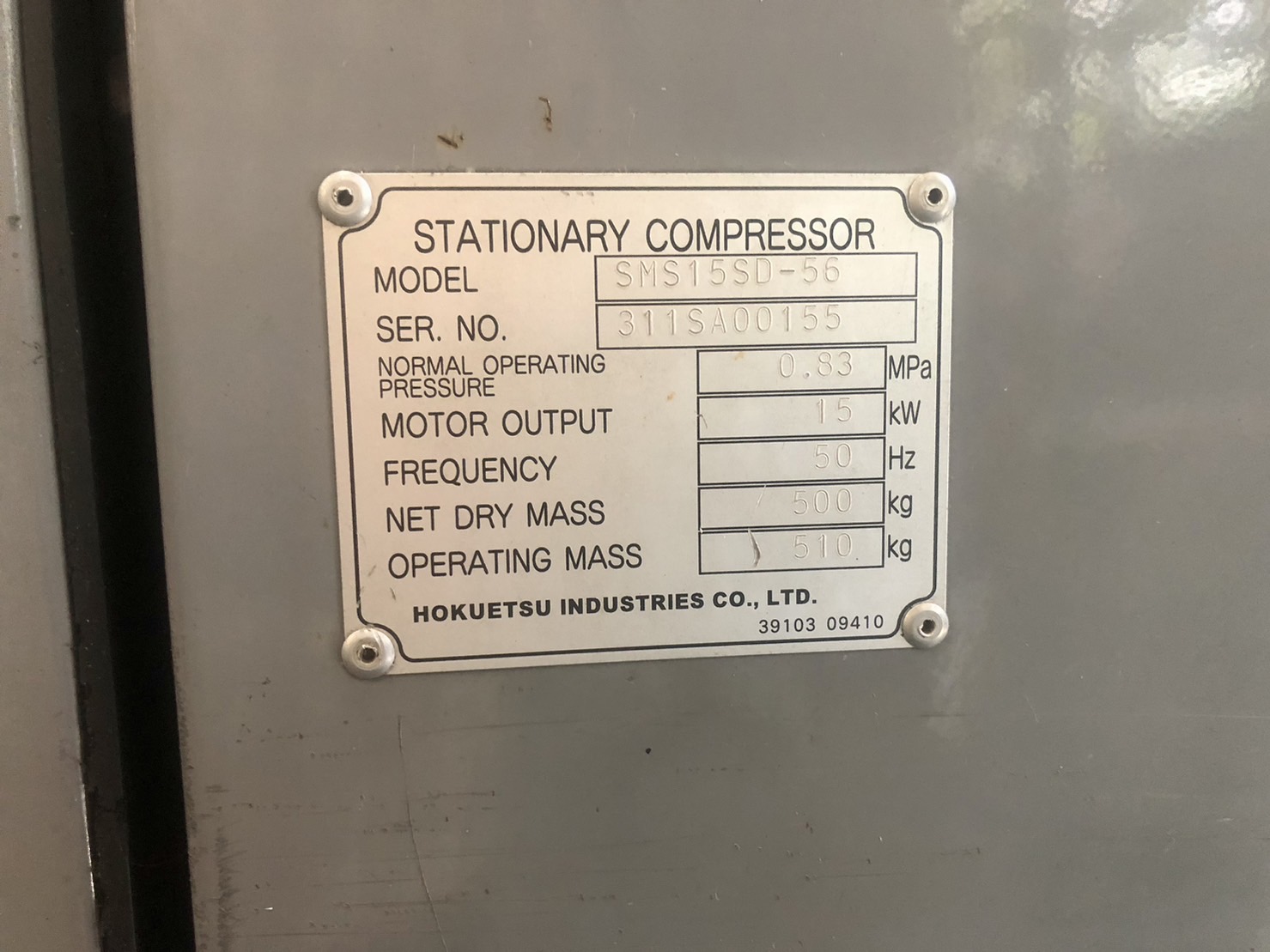

Model                                                   : SMS 155D -56/66

Type                                                      : Rotary Twin Screw, Single-Stage, Oil-Cooled

Free Air Delivery m3/min              : 2.1

Rated Operating Pressure            : 8.5(120)(830)   kg/cm3(PSIG)(kPa)

Unloader Type                                  : Air intake closing type

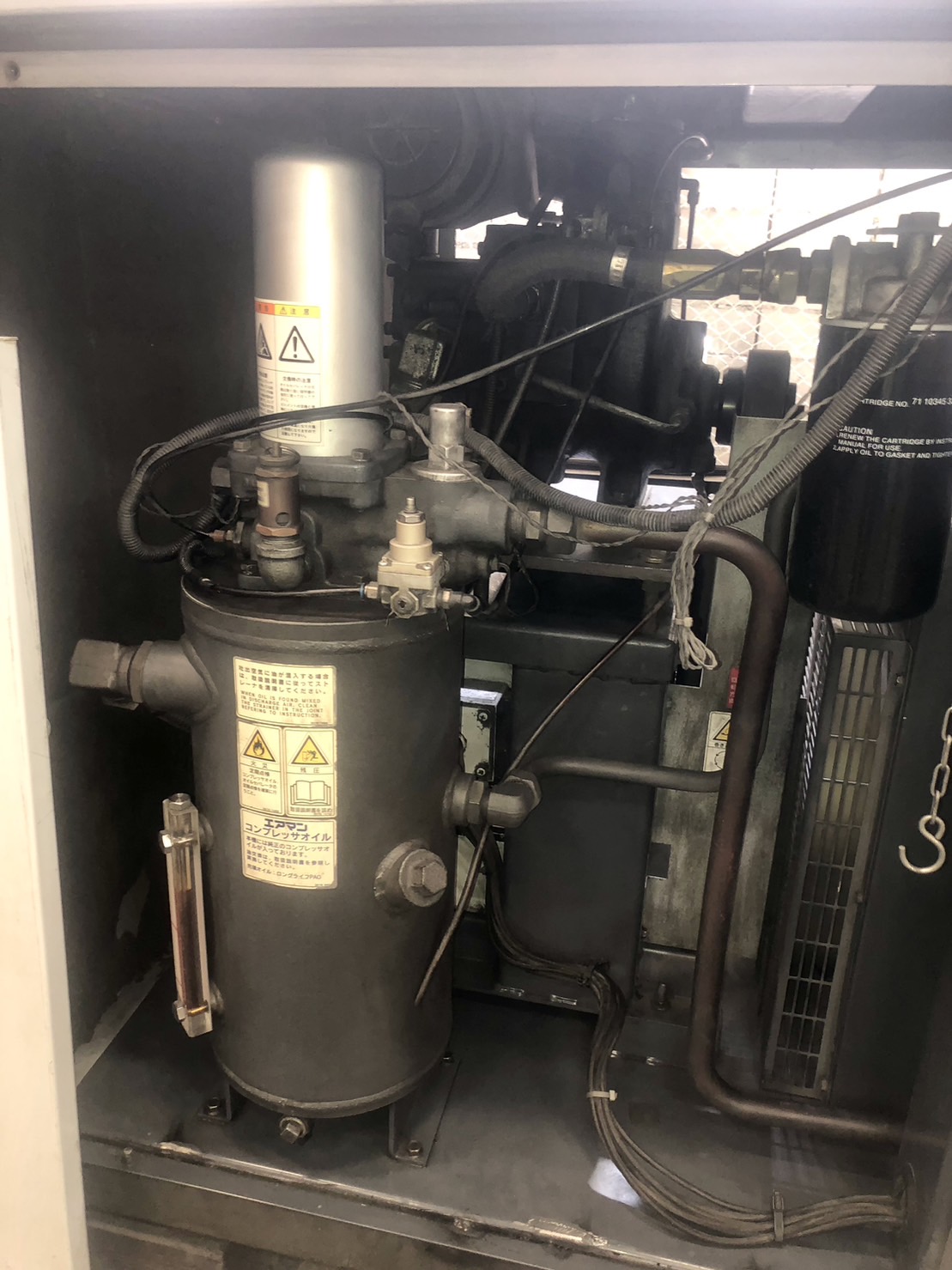

Receiver Tank Capacity                  : 0.016(4.2)          m3(Us gal)

Output                                                 : 15(21.2)              k(HP)

Frequence                                          : 50/60                Hz

Voltage                                                : 200/200 or 380 or 400/444                          V

No. of pole                                          : 4                                                                            P

Starting System                                : Direct

Cooling system                                 : Air-Cooled

Overall Length                                   : 1475(58.1)                                                           mm(inch)

Overall Width                                    : 810(319)                                                             mm(inch)

Overall Height                                   : 1100(43.3)                                                         mm(inch)

Wet Weight                                        : 510                                                                       kg(Ibs)
